MPack 261A - Renon Power Technology Inc.

Core Features

High energy density: Designed with high-energy density batteries, the compact volume is suitable for environments with limited space.

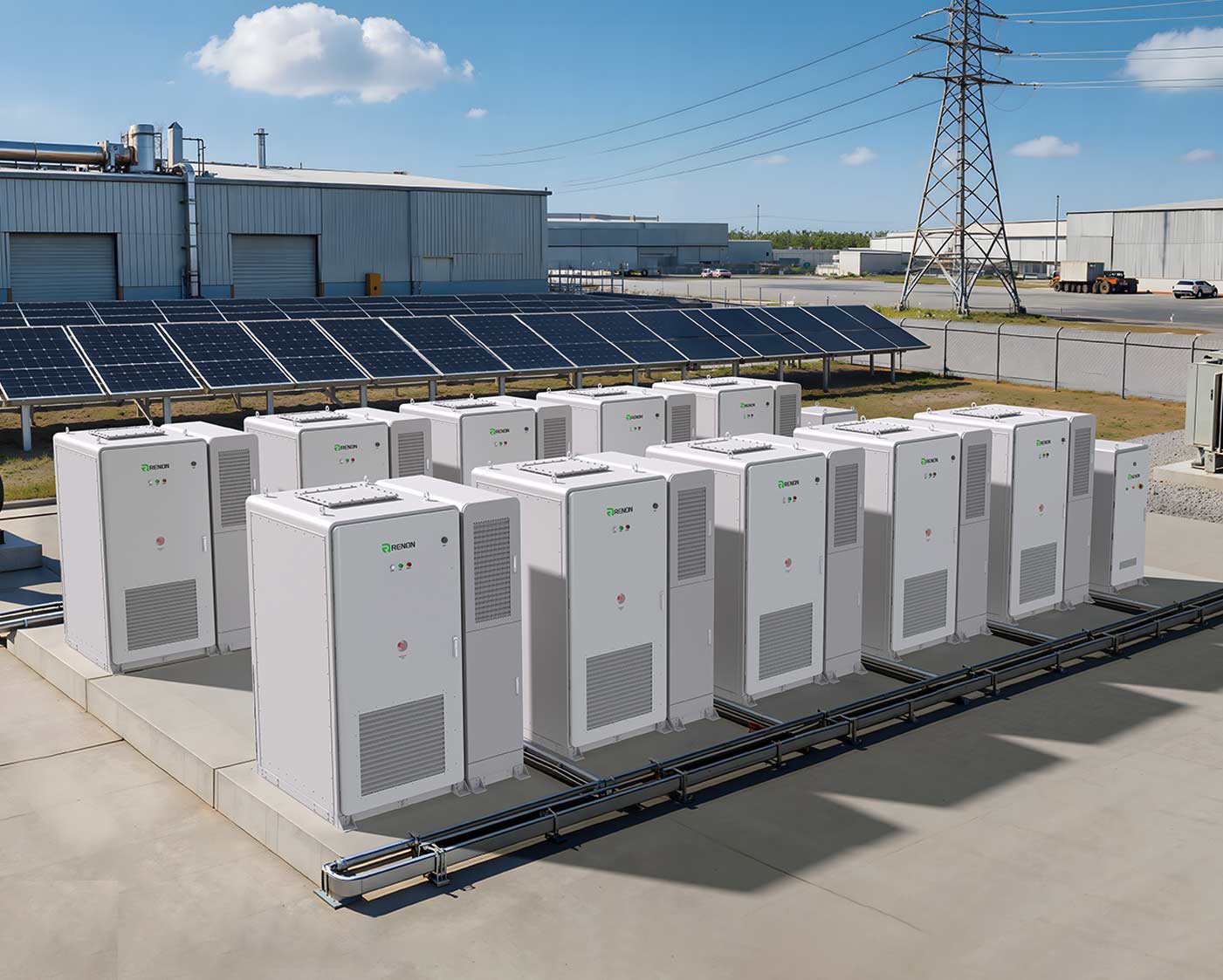

261 kWh High-Capacity Storage

High-capacity storage for flexible C&I energy applications.

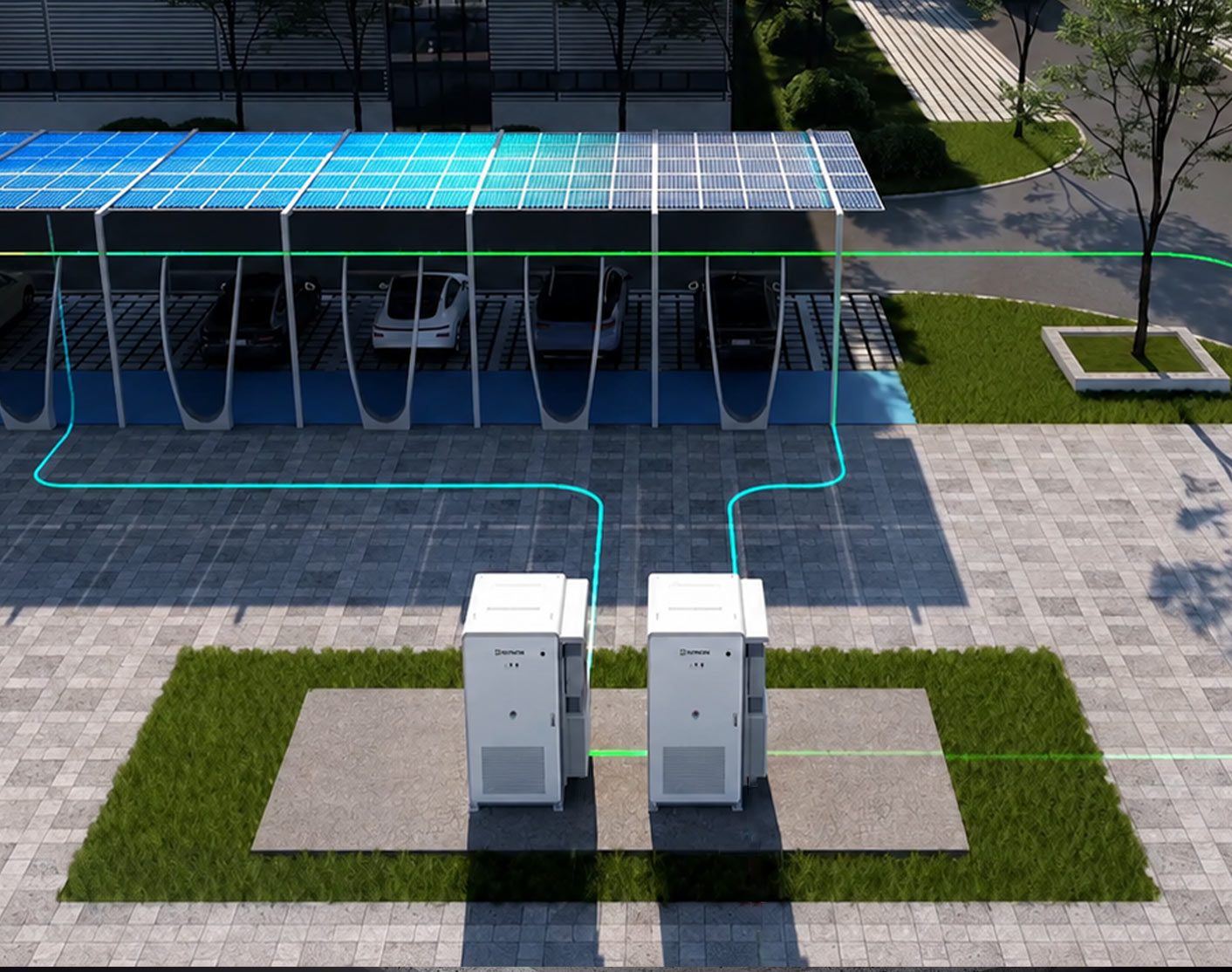

Smart Load Management

Optimizes energy use and helps reduce electricity costs.

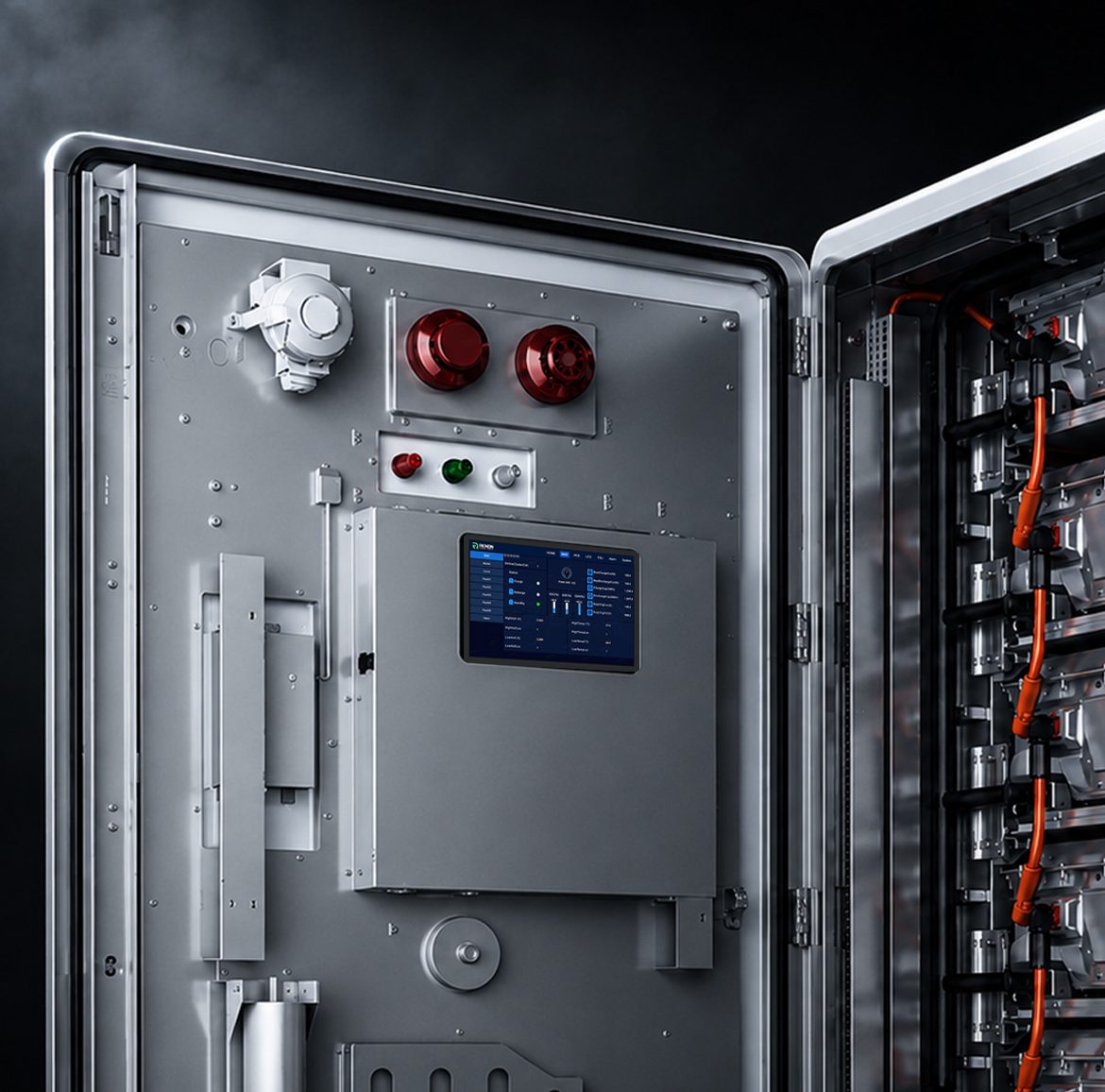

Intelligent Energy Management

Integrated EMS enables smart monitoring and dispatch.

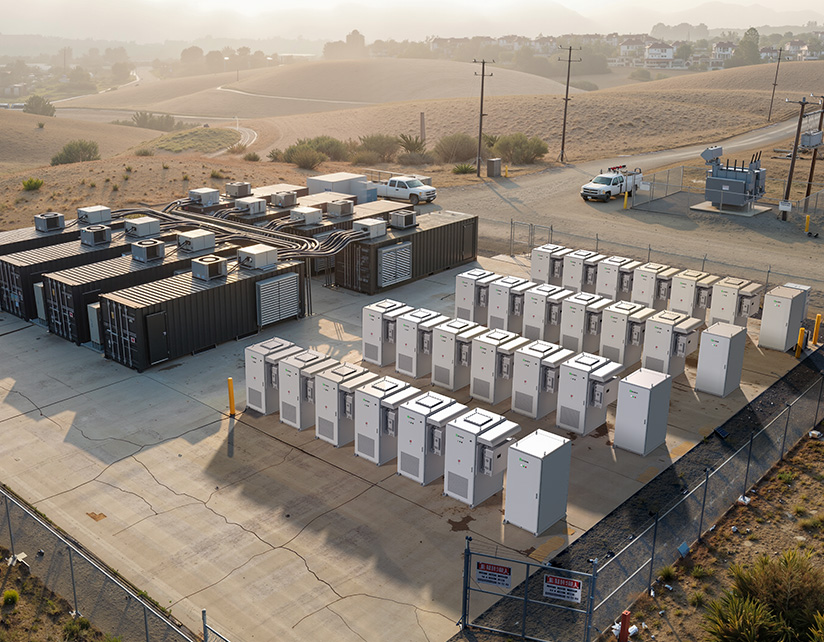

Scalable & Flexible Design

Modular design supports flexible system expansion.

Technical Specifications

High energy density: Designed with high-energy density batteries, the compact volume is suitable for environments with limited space.

Battery Chemistry	LFP 3.2V/314Ah
Rated Energy	261.2 kWh
Rated Power	135 kW
DC Voltage Range	702–936 Vdc
AC Output	480 Vac, 60Hz, 408–528 Vac output range
Cooling Method	Liquid-Cooled
Fire Safety Design	Aerosol Extinguishing
Operating Temperature	-30°C to 55°C / -22°F to 131°F
Communication	CAN, RS485, Ethernet
Certifications	UL9540A:2025, NFPA 855, NFPA 68, ANSI/CAN/UL1973:2022, ANSI/CAN/UL9540:2023, UL1741:2012 Ed.3 + R:19May2023, UL1741:2021 Ed.3 (Supplement SB), CSA C22.2#1071:2016 Ed.4+U1, IEEE 1547:2018, IEEE 1547.1:2020

App.Application scenarios

Provide a one-stop solution covering "equipment+insurance+operation and maintenance"

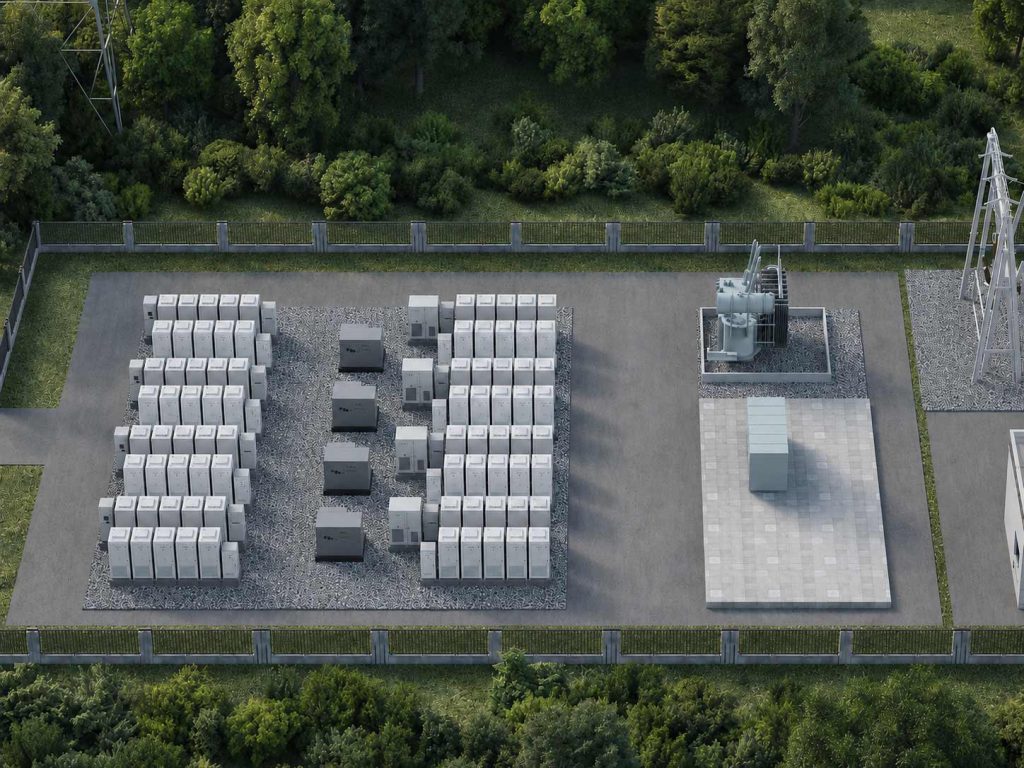

C&I On-Grid Energy Storage

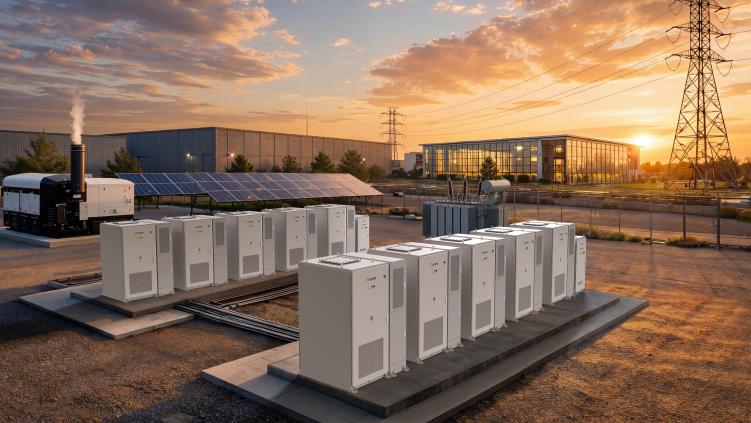

C&I On-Grid Energy Storage (PV+BESS)

System Advantages

High Energy Density

261.2 kWh capacity with 314Ah LFP cells.

Long Service Life

≥8,000 cycles at 90% DOD with a 10-year design life.

Enhanced Safety

IP54 protection with integrated aerosol fire suppression.

Liquid-Cooled Thermal Control

Stable operation across -30°C to +55°C.

CustomerCustomer Case

Provide a one-stop solution covering "equipment+insurance+operation and maintenance"

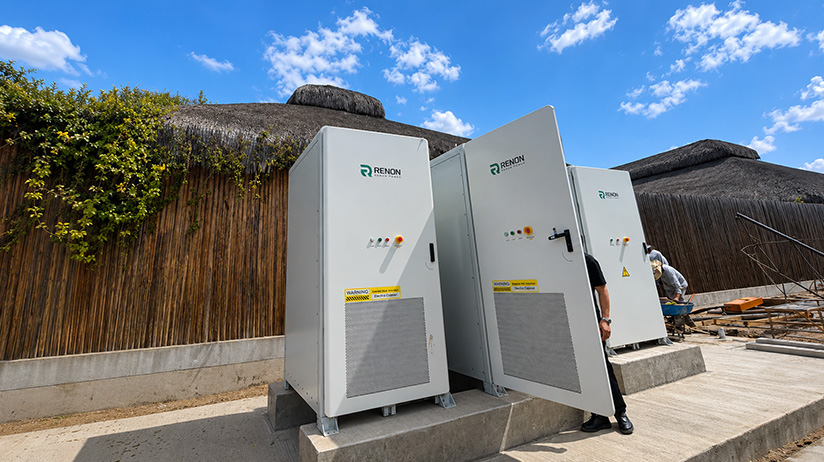

MPack 261 Off-Grid Project in Cabo

🌴𝗠𝗣𝗮𝗰𝗸 𝟮𝟲𝟭 𝗶𝗻 𝗖𝗮𝗯𝗼, 𝗠𝗲𝘅𝗶𝗰𝗼: 𝗼𝗳𝗳-𝗴𝗿𝗶𝗱 𝗽𝗼𝘄𝗲𝗿 𝘄𝗵𝗲𝗿𝗲 𝘁𝗵𝗲 𝗴𝗿𝗶𝗱 𝗶𝘀 𝗻𝗼𝘁 𝗲𝗻𝗼𝘂𝗴𝗵 This project uses 2 MPack 261 units with Combiner Pro for a pure off-grid setup, helping the site build its own local energy sys […]

Austria MPack 233kWh Energy Project

Who says power systems have to be ugly? 🤔 💚 Together with our partner PVS Energy GmbH, we turned this #Austrian installation into a perfect blend of beauty, sustainability, and profitability, proving […]

Sweden MPack 233A Charging Project

⚡𝐂𝐡𝐚𝐫𝐠𝐞 𝐒𝐦𝐚𝐫𝐭𝐞𝐫. 𝐒𝐚𝐯𝐞 𝐌𝐨𝐫𝐞. 𝐄𝐚𝐫𝐧 𝐌𝐨𝐫𝐞. 💰 In #Sweden, our MPack 233A isn’t just powering EVs, it’s enabling a smarter and more profitable charging business. By shaving fast-charging peaks and avoiding […]

Download

MPack 261A – 12 Delivery Packages

MPack 261A – 15 Standard Packages

MPack 261AS-Installation Manual-125kW with Solis 125K Inverter

MPack 261AS-Operation and Maintenance Manual-125kW with Solis 125K

MPack 261AS-Technical Agreement-125kW with Solis 125K Inverter

FAQ

What types of projects is MPack 261A designed for?

MPack 261A is designed for commercial and industrial storage applications, including peak shaving, solar-plus-storage, backup support, EV charging sites and microgrid projects.

Can MPack 261A work with solar?

Yes. MPack 261A can be configured for solar-plus-storage applications when paired with the appropriate power conversion, control and site design.

Can the system be expanded?

The system is designed for modular project planning. Final expansion capability should be confirmed based on the latest Datasheet and project configuration.

What information is needed for a quote?

A typical quote requires site load data, backup requirements, solar capacity if available, grid connection information, target operating strategy and installation location.
