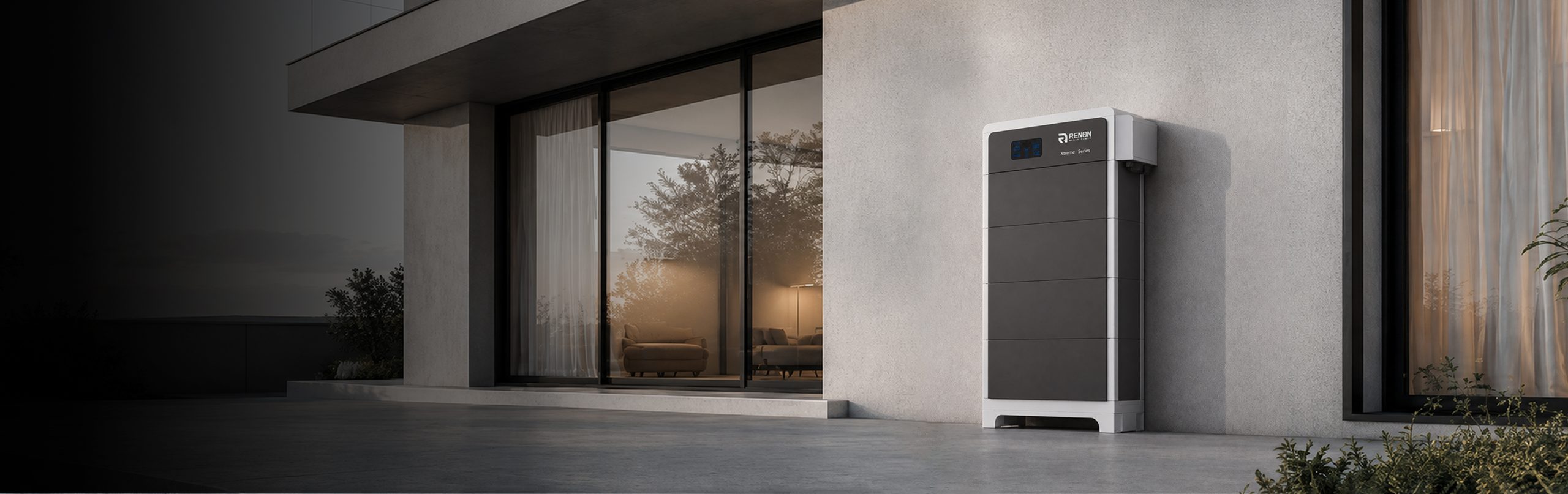

Xtreme LV
Modular LV Battery System
Xtreme LV is a modular low-voltage battery system for residential solar storage and backup power. With stackable capacity, inverter compatibility and smart monitoring, it helps homeowners use stored energy more efficiently.
Xtreme LV
Core Features
High energy density: Designed with high-energy density batteries, the compact volume is suitable for environments with limited space.

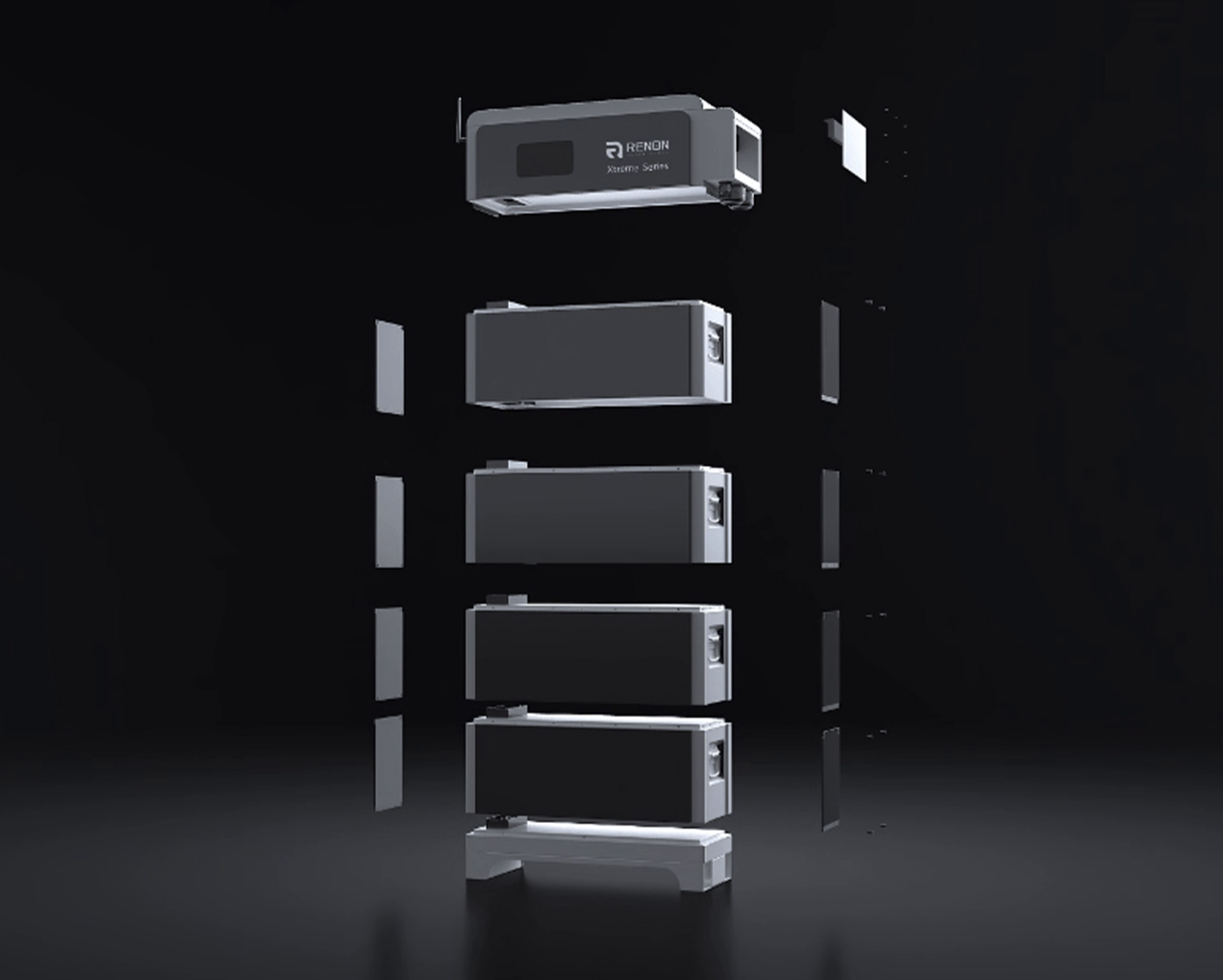

Modular Stackable Design
Stackable battery modules allow capacity expansion as household energy needs grow.
Modular Stackable Design

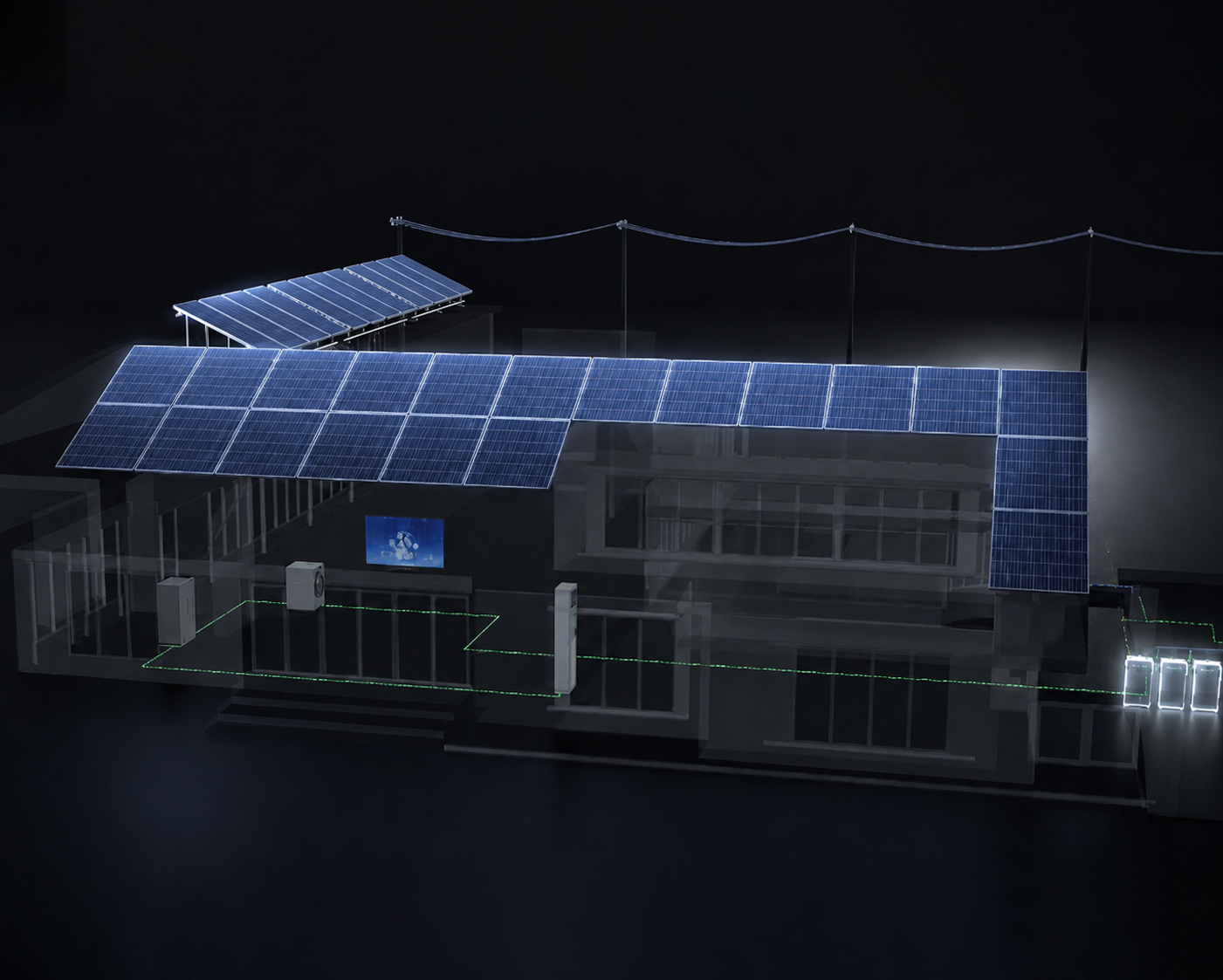

Optimized Solar Self-Consumption
Store excess solar energy during the day and use it when demand is higher.
Optimized Solar Self-Consumption

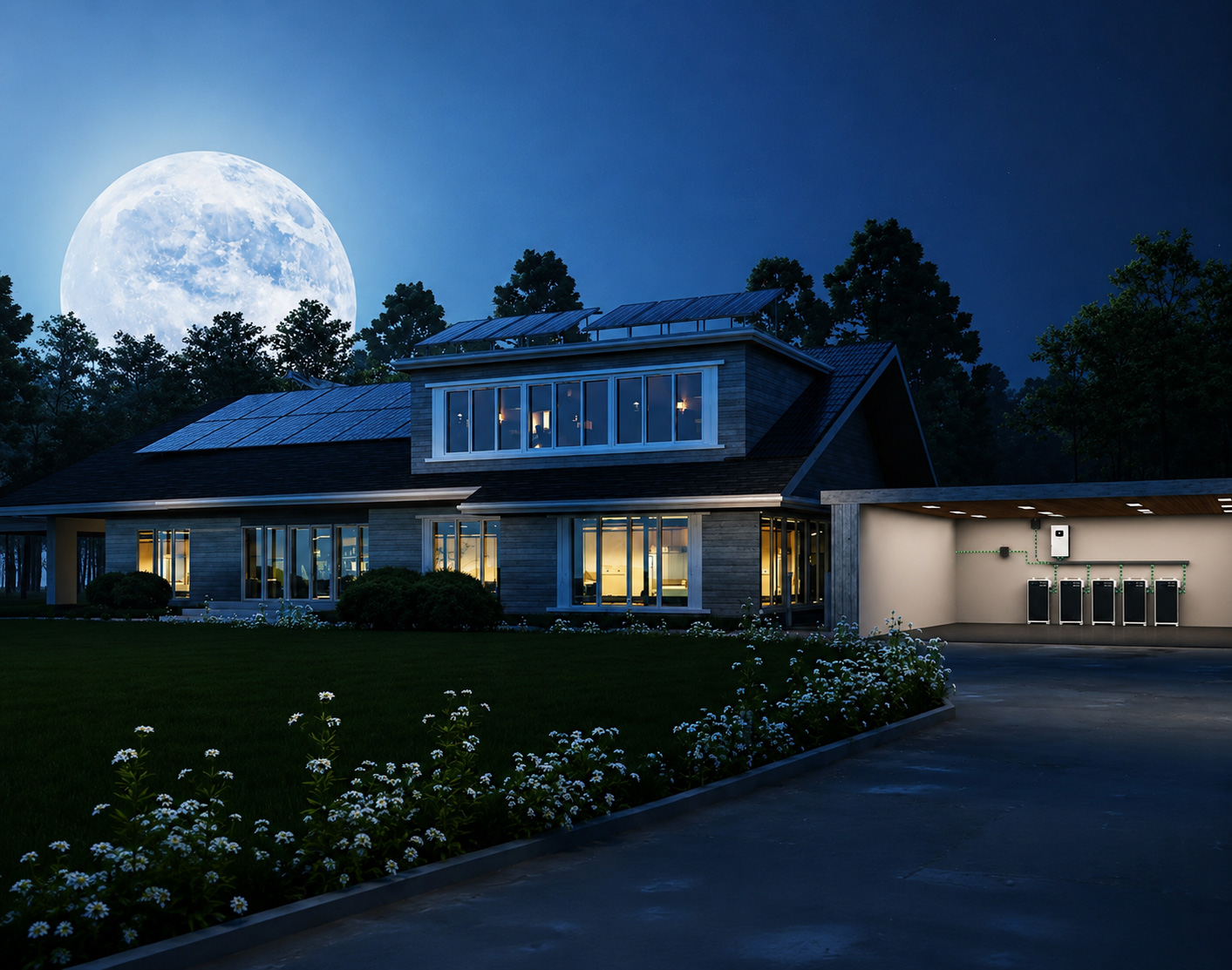

Reliable Home Backup Power
Support essential home loads during grid interruptions with a compatible inverter.
Reliable Home Backup Power
Compact Low-Voltage Architecture
Compact design fits garages, utility rooms and space-limited home environments.
Compact Low-Voltage Architecture
Technical Specifications
High energy density: Designed with high-energy density batteries, the compact volume is suitable for environments with limited space.
2 Modules 3 Modules 4 Modules 5 Modules 6 Modules 7 Modules 8 Modules
Nominal Energy (kWh) 10.24 15.36 20.48 25.6 30.72 35.84 40.96
Output Power (kW) 9.7 14.6 15.4 15.4 15.4 15.4 15.4
Nominal Voltage (V) 51.2
Dimensions – W*D*H (in) 25*10.6*31.3 25*10.6*40.3 25*10.6*49.2 25*10.6*58.2 25*10.6*67.1 25*10.6*76 25*10.6*85
Weight (lb) ~311 ~426 ~545 ~661 ~778 ~895 ~1012
Certifications UL1973, UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311
App.Application scenarios
Provide a one-stop solution covering "equipment+insurance+operation and maintenance"
Residential Series Peak Shaving
Residential Series Peak Shaving
Residential Series Emergency Backup
Residential Series Emergency Backup
Residential Series Energy Surplus
Residential Series Energy Surplus
Residential Series Self-consumption
Residential Series Self-consumption
System Advantages
Flexible Capacity
Flexible Capacity
Start with the capacity you need and expand as energy demand grows.
Long Cycle Life
Long Cycle Life
Designed for long-term daily operation with up to 8,000 cycles.
Broad Compatibility
Broad Compatibility
Works with compatible inverters and energy management systems for flexible integration.
Smart Monitoring
Smart Monitoring
WiFi and app control make system status easier to monitor and manage.
CustomerCustomer Case
Provide a one-stop solution covering "equipment+insurance+operation and maintenance"

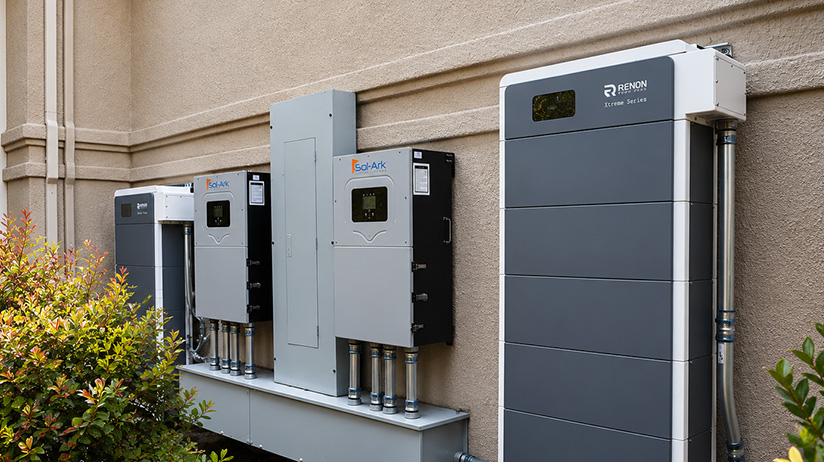

Alamo Solar + Storage Project
Alamo Solar + Storage Project
🔋 Another strong solar + storage project delivered in Alamo, California This installation showcases the expertise of Green Air, pairing a high-performance solar array with over 61 kWh of Renon Power e […]

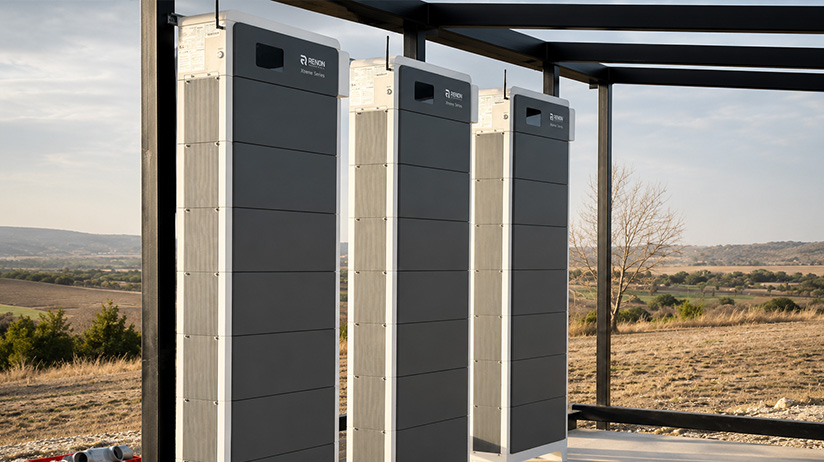

Kerrville Clean Storage Installation
Kerrville Clean Storage Installation
Most backup systems are designed to be hidden. Generators get pushed behind fences. Tucked behind landscaping. Out of sight. Out of mind. But every once in a while… an installer delivers something so […]
FAQ
How much capacity can Xtreme LV provide?
Xtreme LV supports multiple stack configurations from 10.24kWh to 40.96kWh, with further system expansion available through parallel connection.
Can Xtreme LV work with solar panels?
Yes. When paired with a compatible inverter, Xtreme LV can store solar energy for self-consumption and backup use.
Can the system be installed outdoors?
Yes. Xtreme LV is designed for indoor or outdoor installation when fully assembled according to product requirements.
Is Xtreme LV suitable for future expansion?
Yes. The modular stack design supports future expansion as household energy needs grow.
