Smart Matrix B
Integrated PCS Containerized Battery Energy Storage System
Smart Matrix-B is a modular liquid-cooled energy storage with DC output, designed for centralized PCS integration and scalable C&I and grid-scale projects.

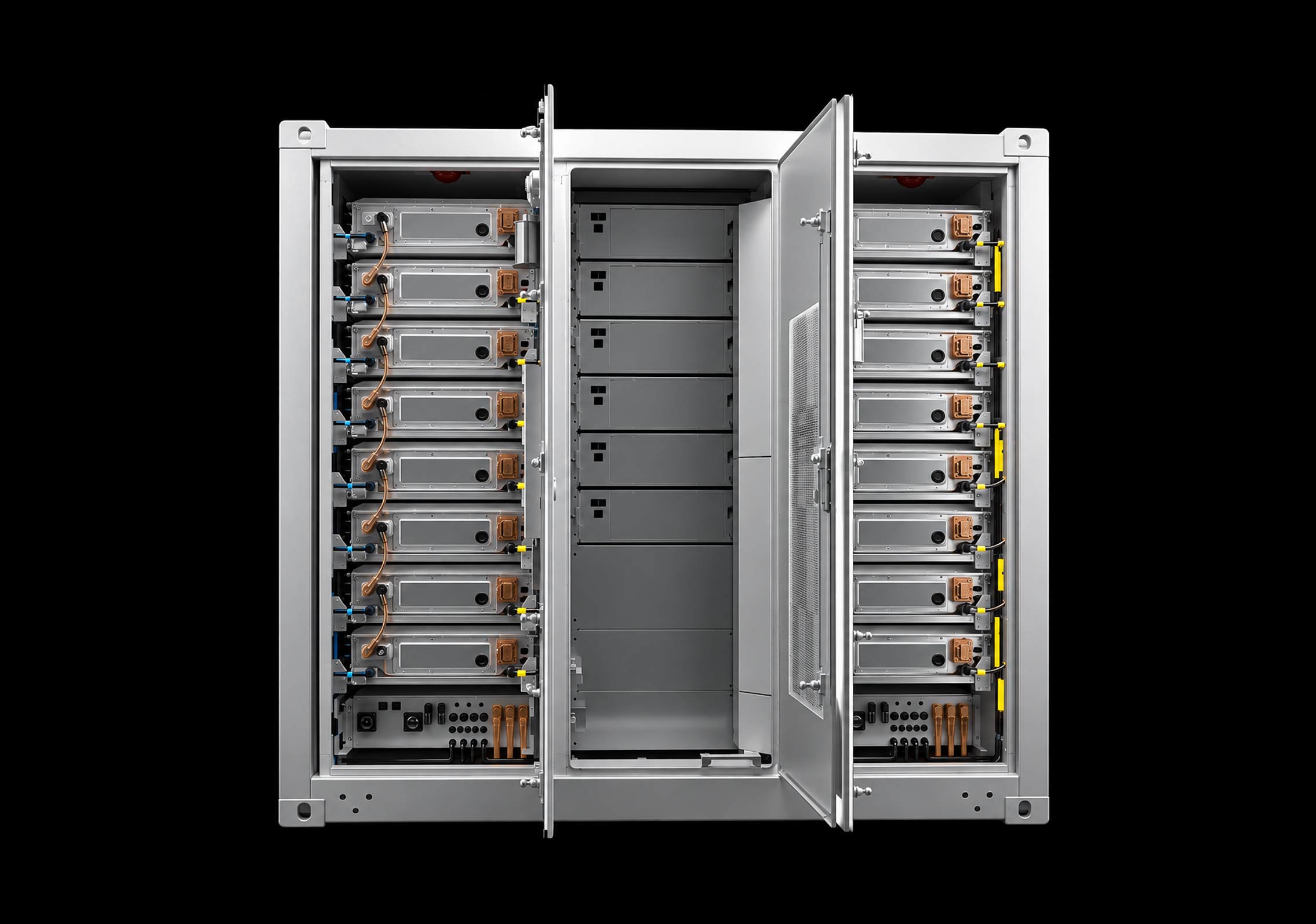

Smart Matrix B
Core Features
High energy density: Designed with high-energy density batteries, the compact volume is suitable for environments with limited space.
High-Capacity Energy Storage
1.672–5.016 MWh capacity options.
High-Capacity Energy Storage
Intelligent Energy Management
DC output supports external centralized PCS.
Intelligent Energy Management
Intelligent Energy Management
Self-developed EMS for remote monitoring and dispatch.
Intelligent Energy Management
Modular & Scalable Design
10-ft modular design for easy deployment and expansion.
Modular & Scalable Design
Technical Specifications
High energy density: Designed with high-energy density batteries, the compact volume is suitable for environments with limited space.
Battery Energy Storage 1.672 / 3.344 / 5.016 MWh
Cell Type LFP 3.2V / 314Ah
Nominal Voltage 1331.2V
Operating Voltage Range 1040–1497.6Vdc
Depth of Discharge 90% DoD
Thermal Management Liquid-Cooled
App.Application scenarios
Provide a one-stop solution covering "equipment+insurance+operation and maintenance"

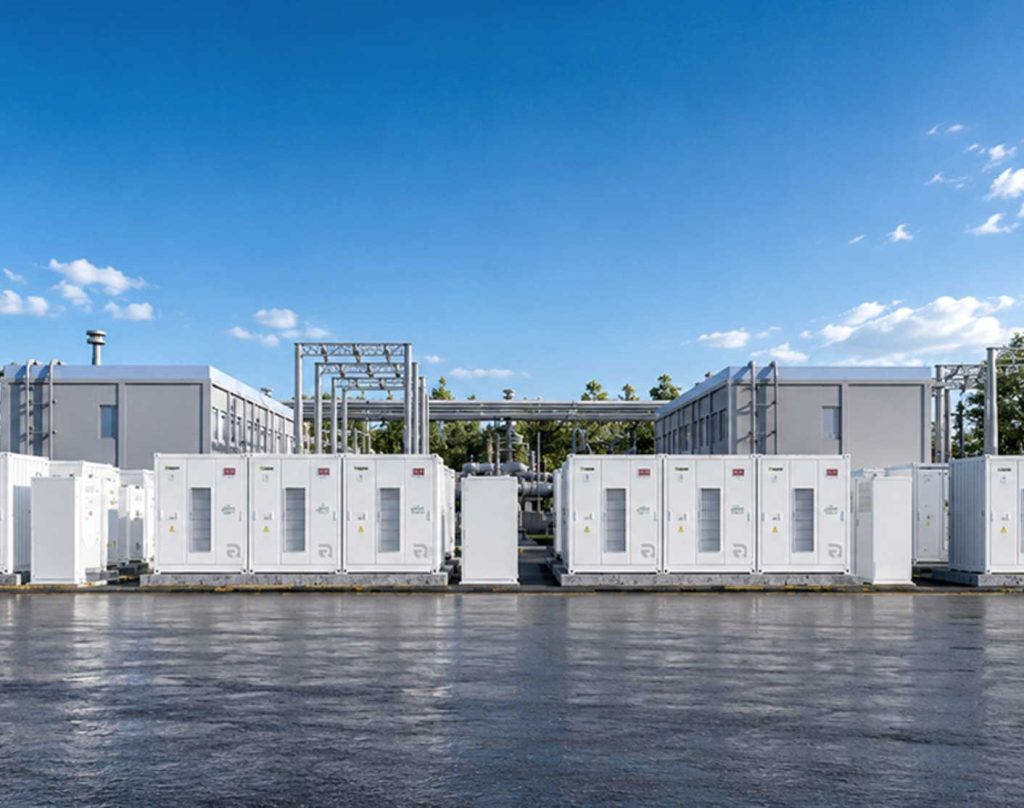

On-Grid Applications (13.8kV)
On-Grid Applications (13.8kV)

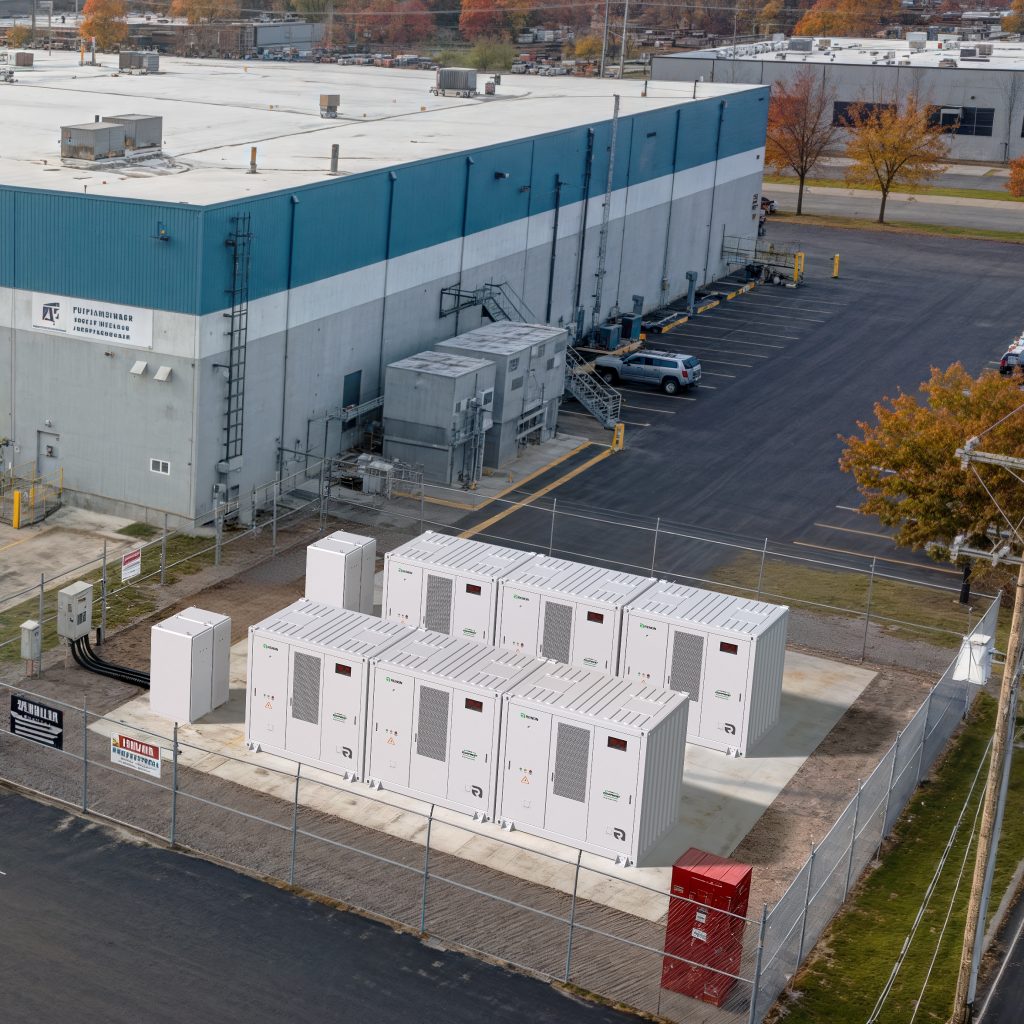

On-Grid Applications (34.5kV)
On-Grid Applications (34.5kV)
System Advantages
High Energy Density
High Energy Density
1.67 MWh capacity in a compact 10-ft container.
Long Service Life
Long Service Life
≥8,000 cycles at 90% DOD with a 10-year design life.
High-Efficiency Conversion
High-Efficiency Conversion
High PCS efficiency with THDi ≤3% and fast response.
Enhanced Safety Protection
Enhanced Safety Protection
IP54 protection, aerosol fire suppression, and multi-level BMS.
FAQ
Does Smart Matrix B include a PCS?
No. Smart Matrix B provides DC battery output and works with an external centralized PCS.
Where can Smart Matrix B be used?
It is designed for large factories, industrial parks, commercial complexes, data centers, and utility-scale energy storage projects.
