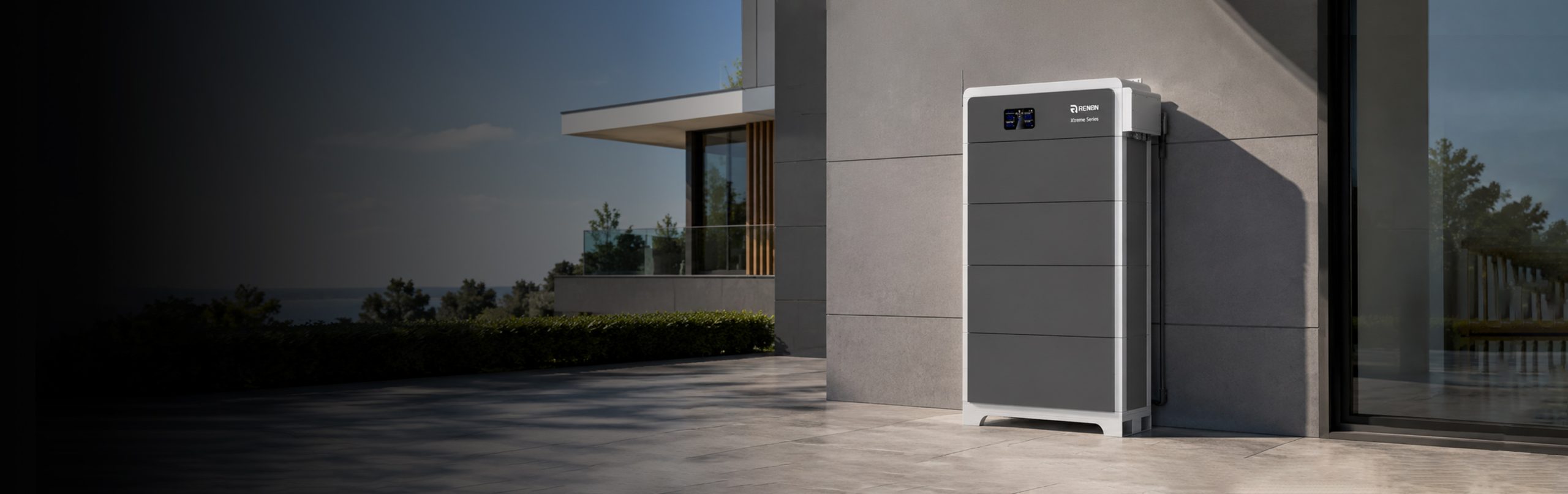

Xtreme HV 1.0
High-Voltage Stacked Battery
The Xtreme HV1.0 Residential Battery is a high-voltage energy storage solution designed for homes. Its advanced technology and robust safety features ensure reliable and efficient energy storage.
Xtreme HV 1.0
Core Features
High energy density: Designed with high-energy density batteries, the compact volume is suitable for environments with limited space.

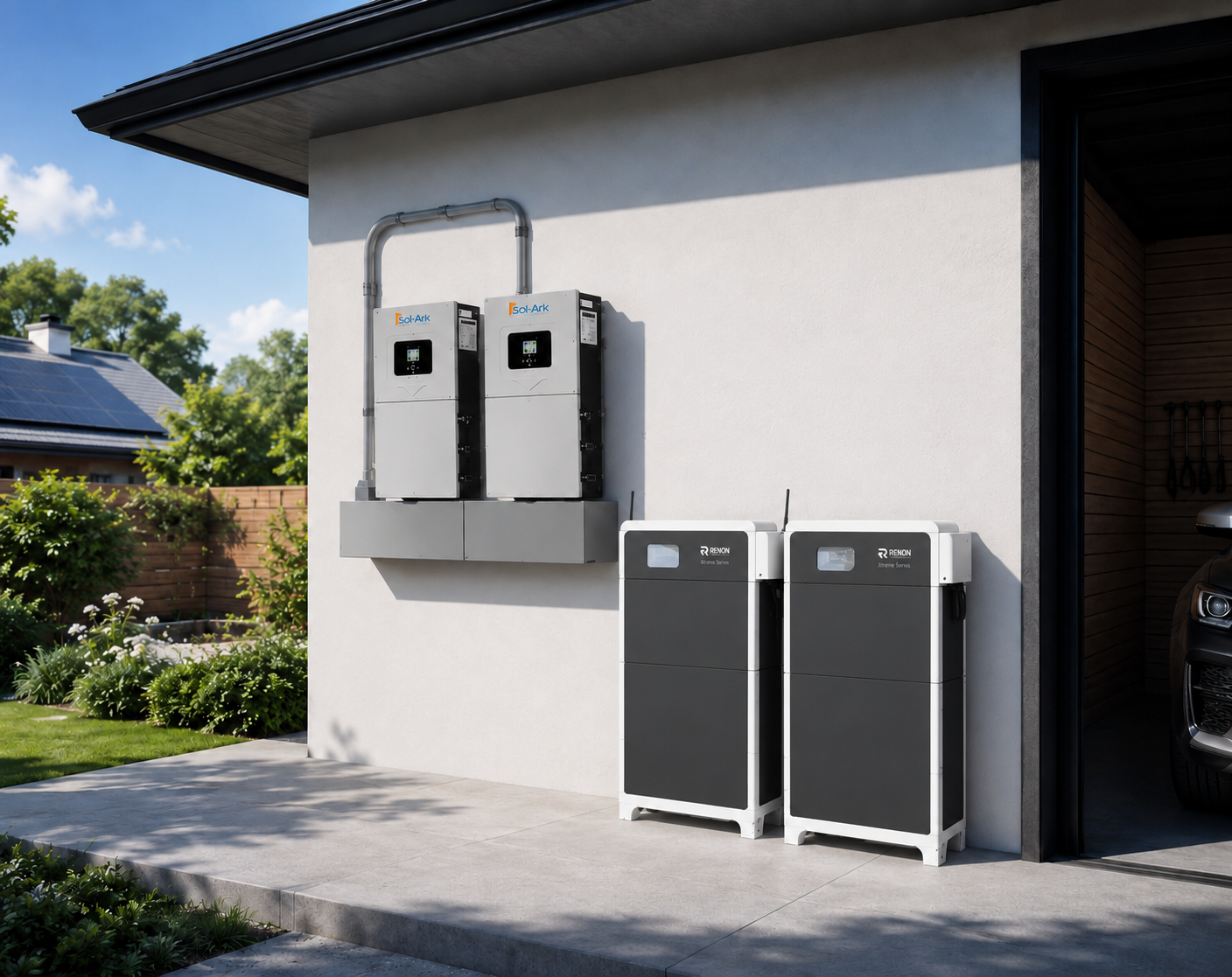

High-Voltage Efficiency
Up to 384V nominal voltage helps reduce transmission losses and improve energy storage efficiency.
High-Voltage Efficiency

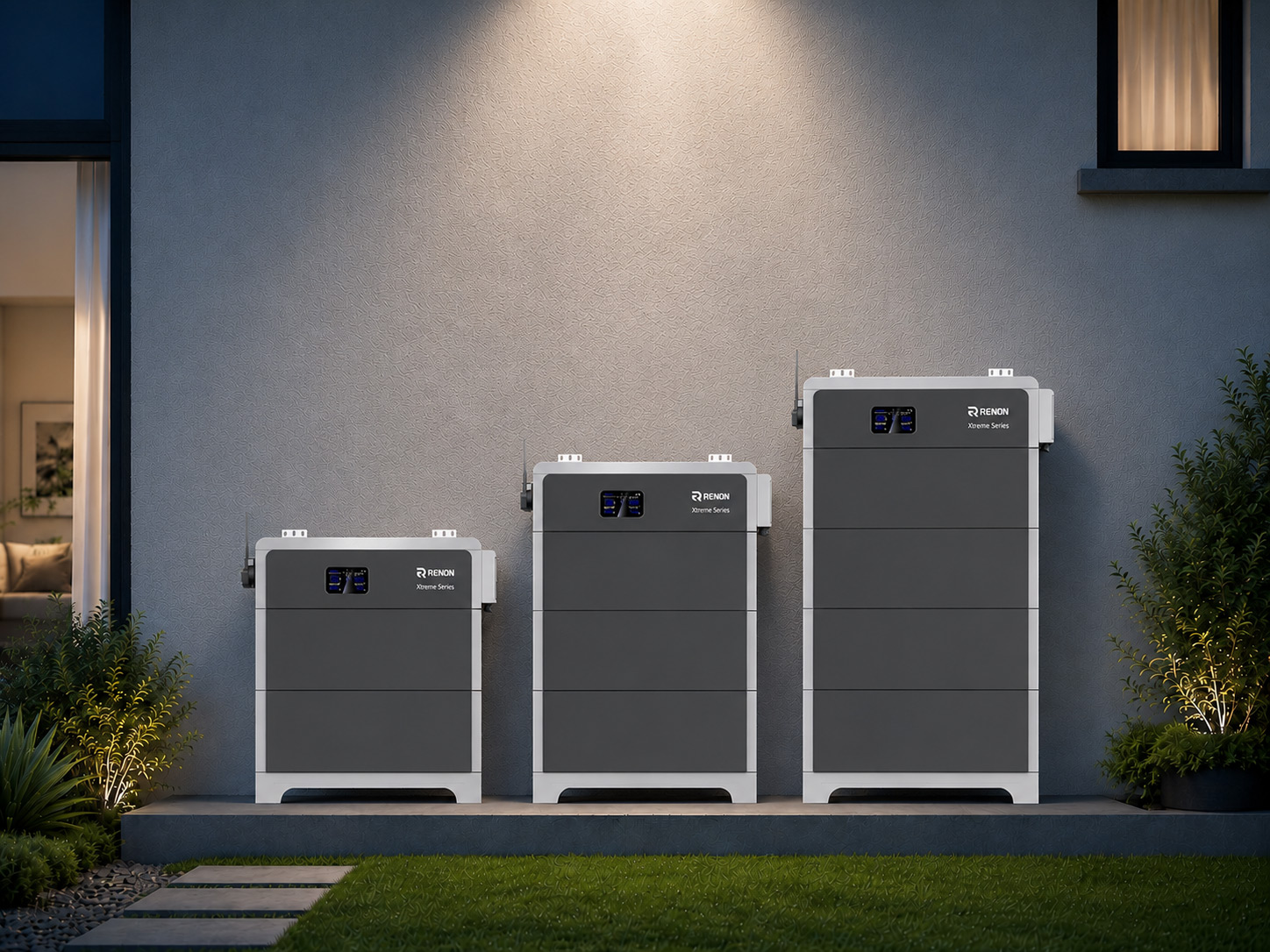

Modular Stack Design
Supports 2 to 4 battery modules, making it easy to match different storage capacity needs.
Modular Stack Design
Smart Energy Management
WiFi connectivity and intelligent management support system monitoring, unified control and fault warning.
Smart Energy Management
Safe and Durable Design
LiFePO4 battery chemistry, IP55 protection and up to 8,000 cycles support stable long-term operation.
Safe and Durable Design
Technical Specifications
High energy density: Designed with high-energy density batteries, the compact volume is suitable for environments with limited space.
9.6kWh System 14.4kWh System 19.2kWh System
Battery Chemistry LiFePO4
Nominal Energy 9.6kWh 14.4kWh 19.2kWh
Product Module Quantity 2 modules 3 modules 4 modules
Nominal Voltage 192V 288V 384V
Input Voltage Range 162–219V 243–328.5V 324–438V
Max. Charging / Discharging Current 48A
Scalability Max. 4 clusters in parallel
Cooling Natural Cooling
Cycle Life 8,000 Cycles
Communication RS485, CAN, WiFi
IP Rating IP55
Warranty 10 Years
App.Application scenarios
Provide a one-stop solution covering "equipment+insurance+operation and maintenance"
Residential Series Peak Shaving
Residential Series Peak Shaving
Residential Series Emergency Backup
Residential Series Emergency Backup
Residential Series Energy Surplus
Residential Series Energy Surplus
Residential Series Self-consumption
Residential Series Self-consumption
System Advantages
Higher Voltage, Lower Loss
Higher Voltage, Lower Loss
The high-voltage platform helps improve energy transfer efficiency across the system.
Flexible Capacity Options
Flexible Capacity Options
Choose from 9.6kWh, 14.4kWh or 19.2kWh configurations based on project needs.
Smart Monitoring
Smart Monitoring
WiFi and intelligent management make system operation easier to monitor and control.
Reliable Outdoor Protection
Reliable Outdoor Protection
IP55 protection supports indoor and outdoor installation environments.
CustomerCustomer Case
Provide a one-stop solution covering "equipment+insurance+operation and maintenance"

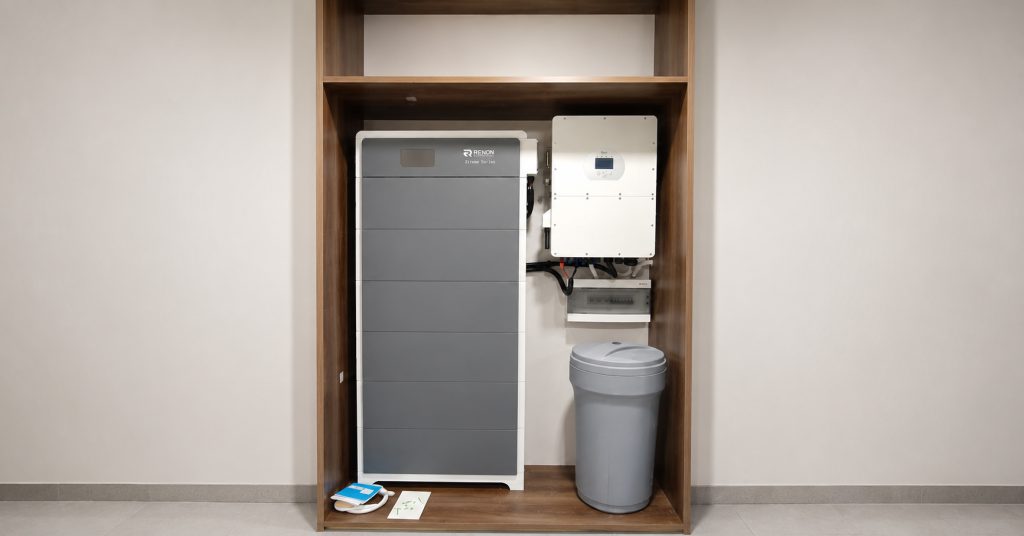

Ukraine Residential Storage Project
Ukraine Residential Storage Project
A residential energy storage project in Ukraine, featuring the Renon Xtreme HV-1 paired with a Deye 30kW inverter. The system provides 30.72kWh of high-voltage battery storage, helping households impr […]
FAQ
Why choose a high-voltage battery system?
A high-voltage system helps reduce transmission losses and improve overall energy efficiency, making Xtreme HV 1.0 suitable for users who want more efficient solar storage and backup power.
Can the system grow with future energy needs?
Yes. Xtreme HV 1.0 supports modular stacking and up to 4 clusters in parallel, making it easier to expand storage capacity when needed.
